Overview
Studio lets you:- Read records from any stream, starting from a tail offset, sequence number, or timestamp
- Stream records live as they arrive
- Append records individually, line-by-line, or as a JSON array
- Trim records up to a sequence number to reclaim storage
- Fence a stream to enforce exclusive write access
Opening Studio
Navigate to any basin in the dashboard, then click Studio in the stream list header. You can also switch basins and streams directly from within Studio using the selectors at the top.
Connection
By default, Studio connects to S2. You can override this to point at s2-lite for local development. Click the connection badge in the top-right header to open the connection settings.
Connecting to s2-lite
Start `s2-lite` with TLS
Run Lite listens on
s2-lite with a self-signed certificate so the browser can connect over HTTPS:https://localhost (port 443) by default.Set the connection endpoint

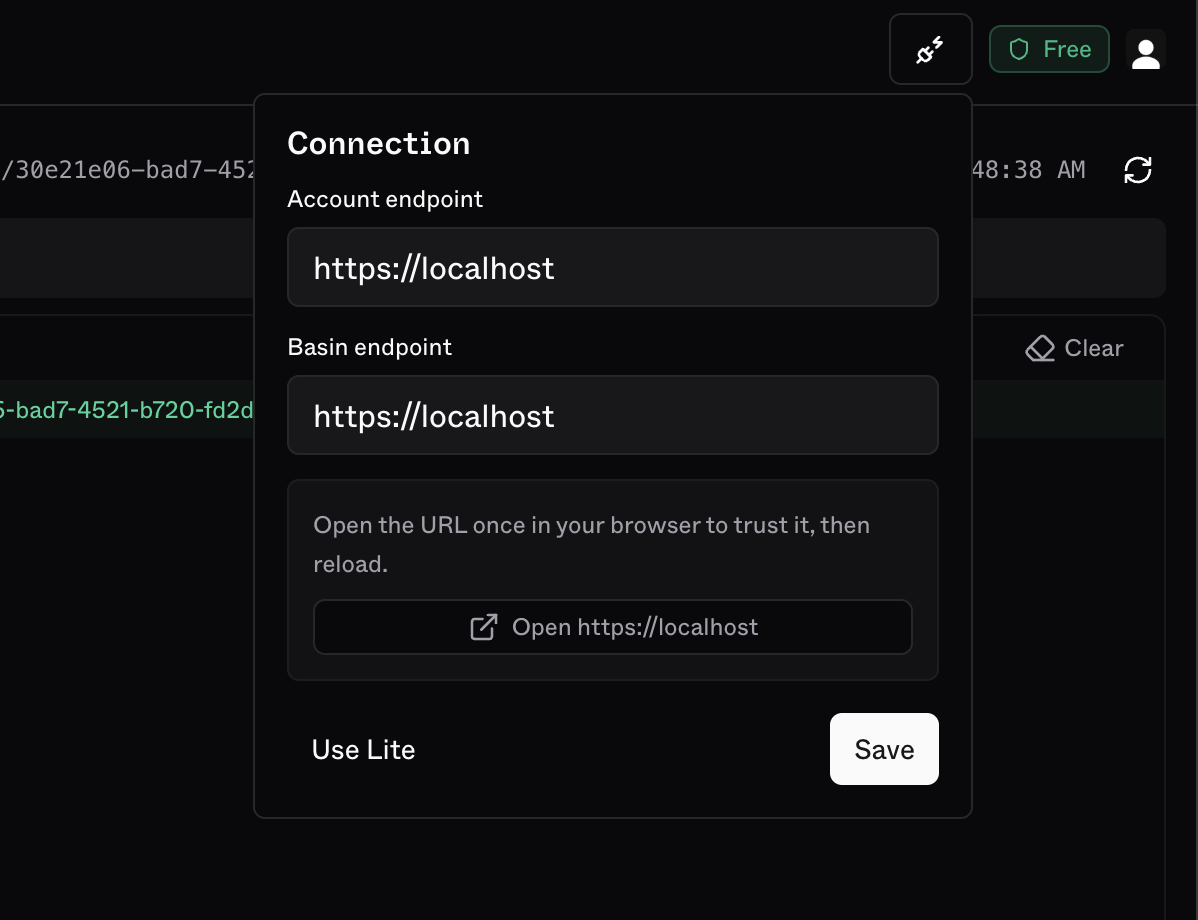

In the connection popover, click Use Lite. This pre-fills both endpoints with
https://localhost.Trust the certificate
Since Lite uses a self-signed certificate, you need to trust it in your browser once.The popover will show a prompt — click Open https://localhost to open it in a new tab, then accept the browser security warning.
After accepting the cert, come back to Studio and click Save to apply the connection. The page will reload and connect to your local Lite instance.
Read

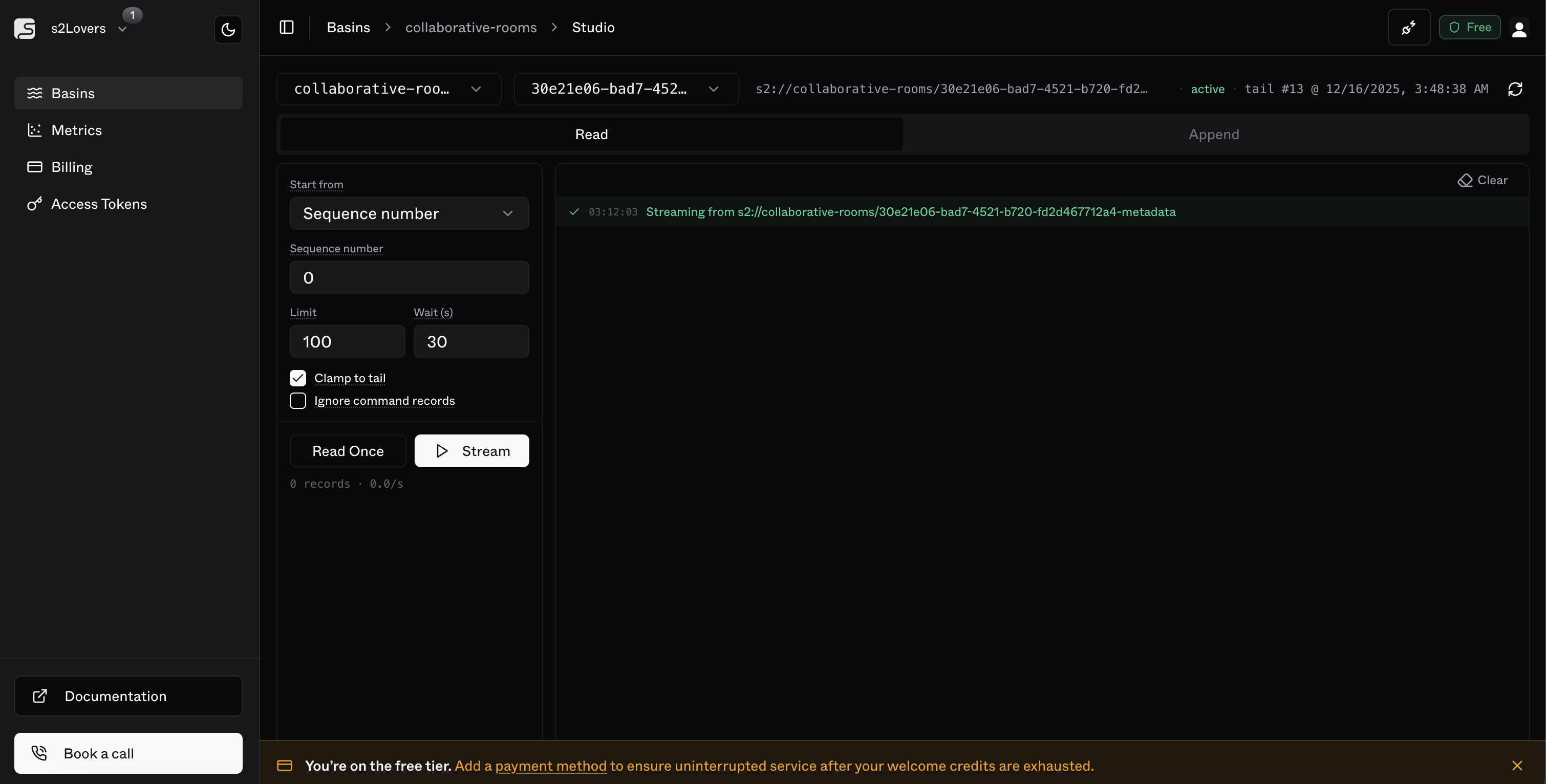

The Read tab lets you fetch records from the selected stream.
| Field | Description |
|---|---|
| Start from | How to anchor the read position: tail offset, sequence number, or timestamp |
| Tail offset | Number of records back from the stream tail (e.g. 10 = last 10 records) |
| Sequence number | Absolute sequence number of the first record to read |
| Timestamp | Start from the first record at or after this time |
| Limit | Maximum records to return per batch (up to 1000) |
| Wait (s) | Seconds to hold a streaming connection open at the tail before stopping. 0 stops immediately at tail. |
| Clamp to tail | If the start position is beyond the tail, clamp to tail instead of erroring |
| Ignore command records | Filter out fence and trim command records i.e. only data records are returned |

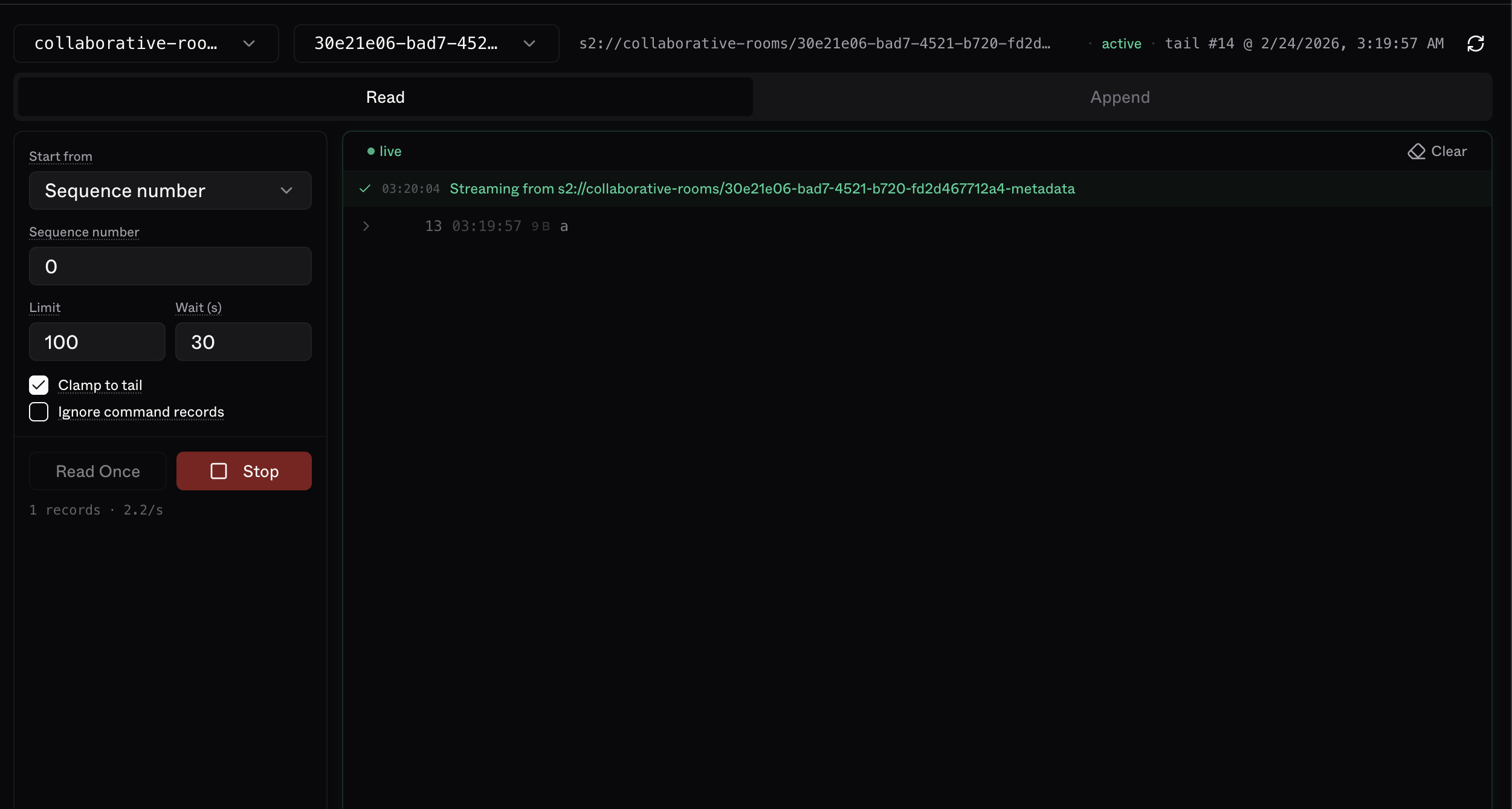

Read Once vs Stream
- Read Once — fetches a single batch with the current settings
- Stream — opens a continuous session that delivers records as they arrive
Append

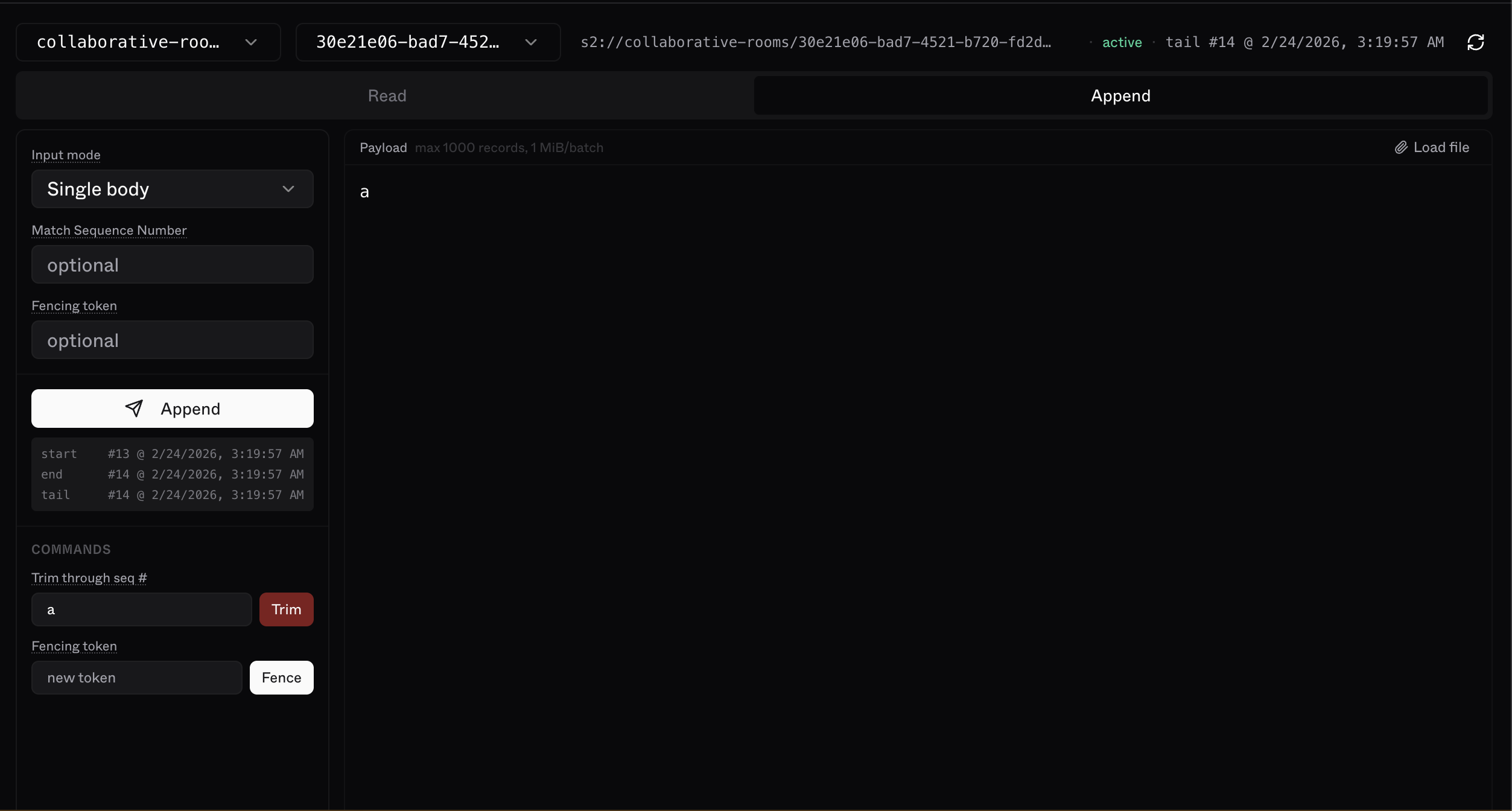

The Append tab lets you write records to the selected stream.
Input modes
| Mode | Behavior |
|---|---|
| Single body | The entire payload is sent as one record |
| One per line | Each non-empty line becomes a separate record |
| JSON array | Parse payload as a JSON array of {body, headers?} objects |
.json → JSON array, .jsonl/.ndjson → one per line, .txt → single body).
Optional fields
| Field | Description |
|---|---|
| Match Sequence Number | Only append if the stream tail matches this sequence number. |
| Fencing token | Required if the stream has a fencing token set. Must match exactly (max 36 bytes UTF-8). |
Commands
| Command | Description |
|---|---|
| Trim through seq # | Discard all records up to and including this sequence number. |
| Fence | Set a new fencing token (max 36 bytes). Once set, all appends must supply this token to enforce single-writer access. |
